The Moipu Harvester EXTENDER 1900 hydraulic extension boom is an excavator attachment that can be used to increase the reach of the harvester

The Moipu Harvester EXTENDER 1900 hydraulic extension boom is an excavator attachment that can be used to equip the excavator for harvesting use. With the help of an extension boom, the excavator gets extended reach and enables hanging mount for the harvester head. The reach can be increased up to 1.9 m. The telescopic boom makes felling work easier and reduces the need to move the machine.



• 80,000 Hours

  That’s a remarkable amount of work hours for a single machine, the Norcar 600 owned by Erkki Rinne is taken well care of, it even has the original Diesel engine.
• Kieran Anders Forestry

  Kieran Anders is a forestry contractor working in the lake district. His work involves hand cutting and extracting timber using a skidder and tractor-trailer forwarder.
• Promoting safety in the workplace

  It is not possible to eliminate chain shot, but there are simple steps that can be taken to reduce the risk.
• Glasfryn Fencing and Sawmill

  Arwel takes great pride in the fact that the mill has no waste whatsoever, “the peelings are used for children’s playgrounds, gardens and for farm animals in barns in the winter and the sawdust has multiple uses in gardens and farms as well.
• Keeping Timber Hauliers Safe

  Timber hauliers need to encourage young blood in, and also look after the hauliers we have, we need make the sector a safe and positive place to work.

FIND US ON

• Facebook
• Instagram
• Twitter
• YouTube
• LinkedIn
• TikTok

Related Posts

• Another Five Star Rating for Volvo Trucks
• Estonia’s Decision to Cut Logging is an Industry Worry
• Komatsu Forest’s Stability Concept
• New Powerful FB84DT Timber Crane from FTG Källefall
• Utilising Harvester Thinning Data to Calculate Remaining Crop Volume

The reach of the extension boom and the attachment points of the hoses can be adjusted individually for each machine. Installation is easy with the bolt-on fitting plate. The support leg of the extension boom makes it easier for the machine to move forward in challenging terrain.

THE MOIPU EXTENDER 1900 IS SUITABLE ON MOST EXCAVATORS

The Extender 1900 is an hydraulic, telescopic extension boom that fits most excavator models. The extension boom adds more reach to the excavator and enables hanging mount for the harvester head. The extension boom enables efficient harvesting work with an excavator.

The extension boom gives the excavator additional reach, to make harvesting work easier. The need to move the machine is reduced when the necessary work phases with reaching can be done with the help of a telescopic arm. The hydraulic cylinder of the Extender 1900 extension boom is controlled with base machine hydraulic lines.

Installation on the excavator is done using a bolted bracket plate. Various bracket plates with bolts are available as optional accessories. It can also be custom-made to fit the machine.

The mounting point of the extension boom bracket can be adjusted, allowing the reach of the extension arm to be customised to each machine. On smaller machines, the reach is shortened to maintain stability, while on larger machines it can be increased. The hose attachment points can also be adjusted according to the selected reach.

The harvester head is attached to the extension boom with a swing damper and a rotator. The swing damper and rotator are also accessories that can be selected as needed. The mounting bracket width of the swing damper is 100 mm, and the peg diameter is 45 mm.

The top of the boom is designed for the Indexator S-100/45 C HD 5016710 swing damper with brake function, but other suitable swing dampers can also be used.

The extension booms have a support leg as standard, which makes it easier for the machine to move forward in challenging terrain. The support leg of the boom is an advantage, especially when crossing ditches and turning situations.

In addition, Extender 1900 extension boom has an adjustable stopper which enables support from the excavator’s lifting boom. This increases the stability of the work, especially when the telescopic arm is at full extension position. It also reduces the load on the bucket cylinder of the machine.

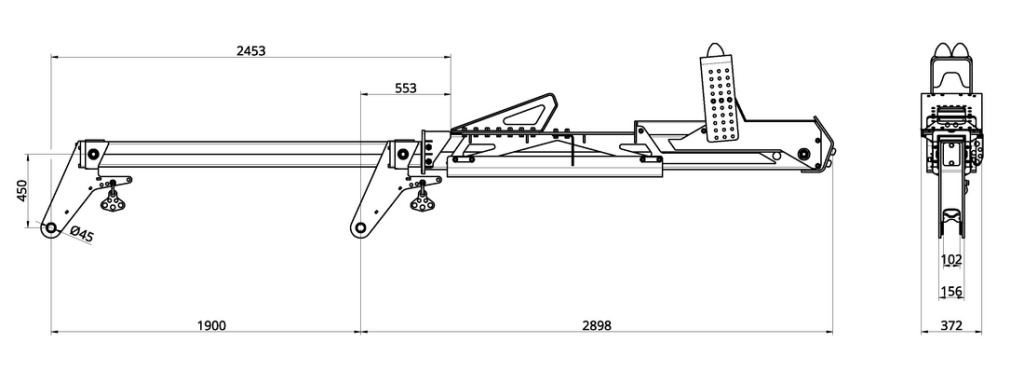

EXTENDER 1900 FEATURES

• Hydraulic extension boom with telescopic arm
• Extra reach and hanging mount for the harvester head
• Adjustable mounting on the excavator lifting boom
• Adjustable attachment points for hoses
• Bolted bracket plate for installation as an option
• Swing damper for harvester head as an option
• The mounting bracket width for swing damper 100 mm / peg Ø 45 mm
• Support leg
• Weight 450 kg* (* without options)
• Maximum lifting capacity 1500 kg
• Reach 1–3 m
• Extension length: 1.9 m
